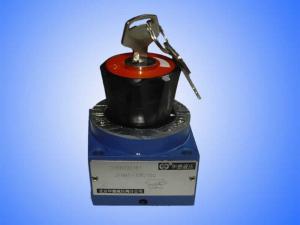

2-Way Hydraulic Flow Control ValvePerformance of this 2-way valve won't change when the temperature and pressure increases or reduces. Users can equip it with Z4S rectifier sandwich plate to control flows from 2 directions.
Rectifier sandwich plate is available to control flows from 2 directions

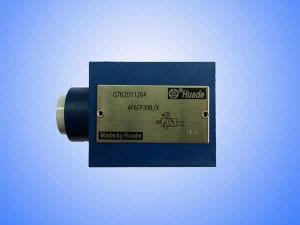

Hydraulic Pressure Gauge Isolation ValveGauge isolator valve AF6 is 3-way spool valve for manual operation. It serves to check the prevailing operating pressure.
The pressure gauge isolator valve is designed with 2 switch positions and is reset by spring
4 installation manners available

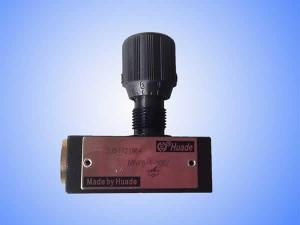

Throttle Isolation Valve, Throttle Check ValveThrottle/isolating valve DV(P) is used for setting the flow accurately and for shutting off the fluid. Throttle/check valve DRV(P) sets the flow along one direction and allows fluid to flow back.
Max pressure (PMAX) : 35

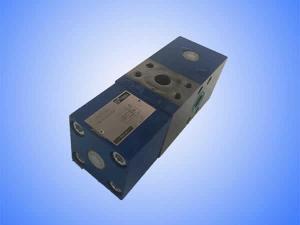

Check Q Meter ValveCheck-Q-meter FD series is applied in hydraulic system to control the speed of motor and cylinder, making sure that they remain unchanged as the load increases or reduces. It is additionally designed with the function of a check valve for protection against pipeline failure. Secondary pressure relief valve (mounted with flange only)

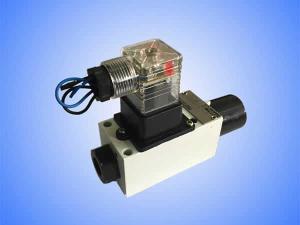

Hydraulic Piston Pressure SwitchPiston type pressure switch series HED is piston actuated switch that closes or opens an electrical circuit when the pressure changes to protect the system. The switch is piston-actuated and moves sensitively. Mechanical stopper is available to protect the switch from overpressure

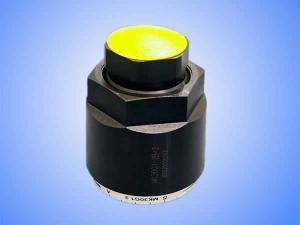

Hydraulic Throttle Valve and Throttle Check ValveThrottle valve MG/MK is a tubular throttle or throttle check valve mounted directly on pipeline. Outlet of the valve adopts axial slot structure, and comes with 7 specifications and 2 kinds of connecting threads. It mainly joins with relief valve to form 3 flow control loops (inlet, outlet, and bypass), and is applied in hydraulic system with little load change or where the speed doesn't have to be highly stable

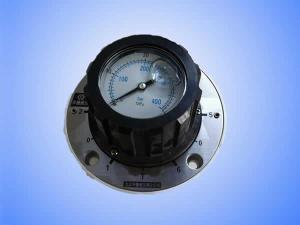

Multi-Circuit Gauge Isolator Valve Multi-circuit gauge isolator MS2A employs rotary spool valve. It is able to test six points in a hydraulic system with a single gauge, and is widely seen in plastic machinery, lathe, and metallurgy industry.
Max pressure (PMAX) : 31.5

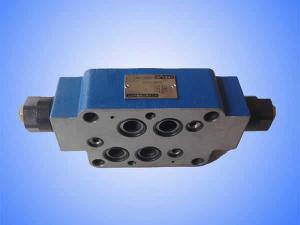

Hydraulic Double Throttle Check ValveZ2FS is double throttle type valve which is capable of controlling the mainstream or pilot flow of one or two points in a hydraulic system. It can connect two circuits of a cylinder at the same time. Check valve Z2FS is used for controlling the mainstream or pilot flow of two throttles. It is suitable for vertical stacking assembly
