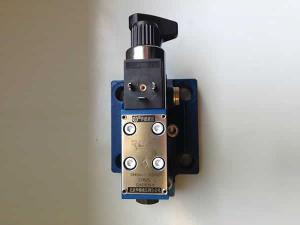

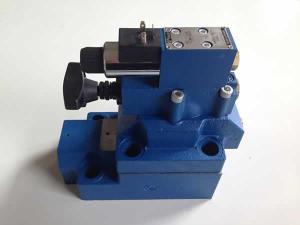

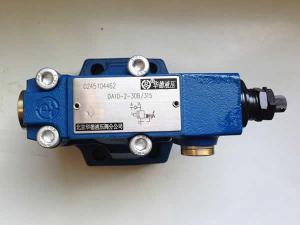

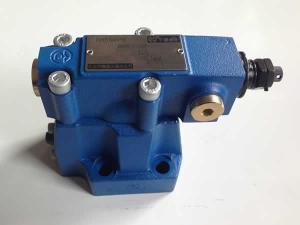

Pilot Operated Pressure Cut-Off Valve

 Pilot Operated Pressure Cut-Off Valve

Pressure cut-off valve, DA/DAW series is pilot operated. Thispressure control valve is applied in accumulator system to unload the oil pump, or to start the high-pressure pump while unload the low-pressure one. In this way, it helps a lot in saving energy for the system.

Main Features
1. Subplate connected
2. 3 pressure adjustment manners
3. 3 pressure ranges

Parameters of Pilot Operated Pressure Control Valve, DA (W) Series
10, 20, 30
Max pressure (PMAX) bar 31.5
Max flow (qvmax) l/min 250

For more detailed information, please download the PDF file

How to Choose the Right Specification

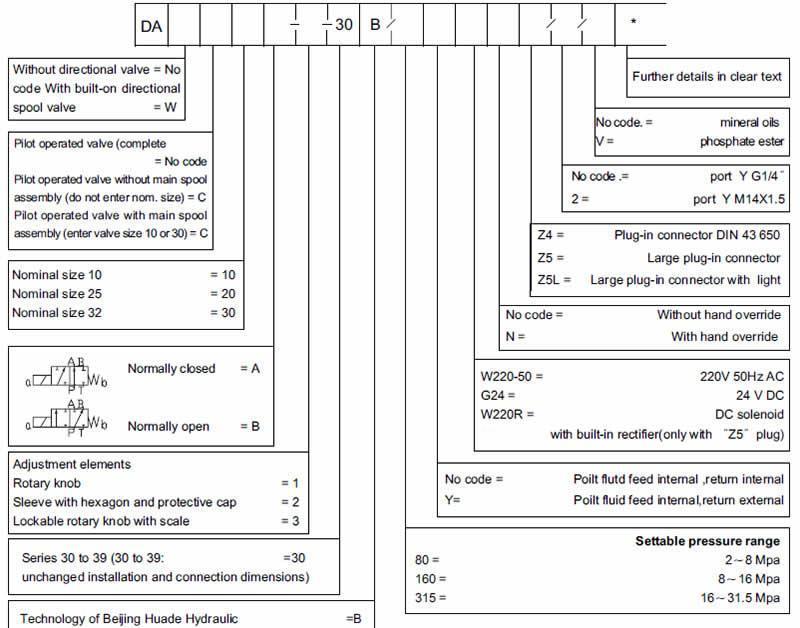

You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.

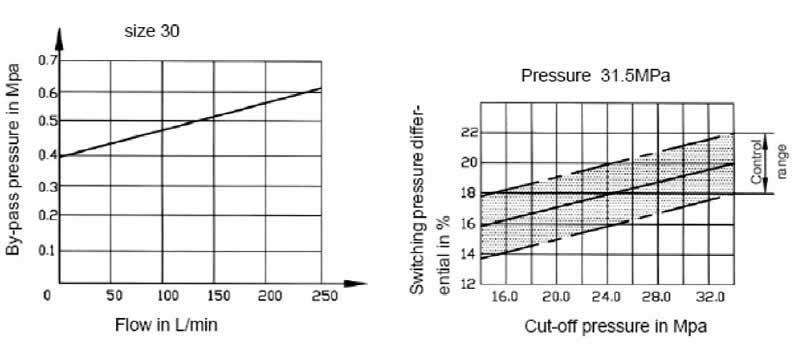

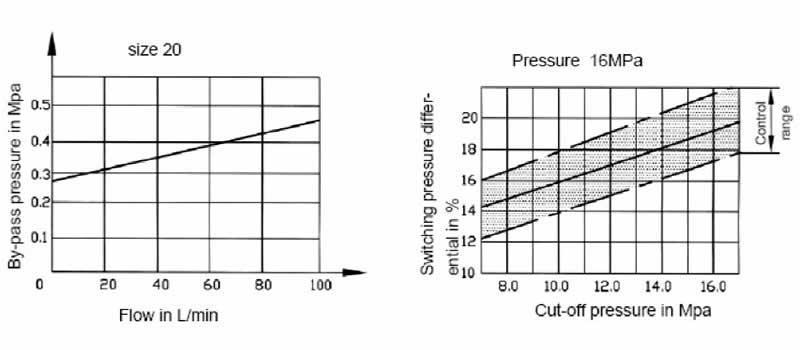

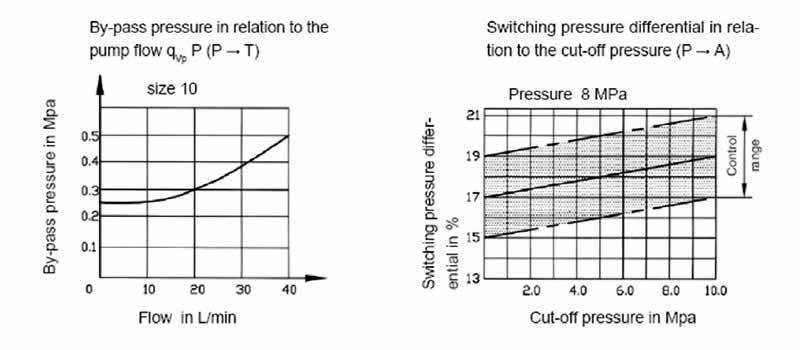

Characteristic curves (measured at v = 41 mm2/s and t = 50℃)

After Sales Service
1. Our valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
