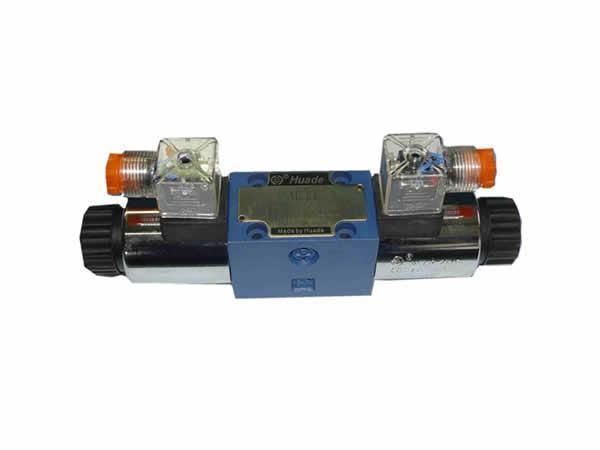

WE6-61B Hydraulic Directional Control Valve

 WE6-61B Hydraulic Directional Control Valve

Directional valve is designed to control the flow direction, and turn on or off the flow with directional spool valve, which is directly driven by the force generated when the electromagnet is energized. It is extensively seen in industrial equipment.

Main Features
1. Removable coil
2. The electromagnet can be rotated 90℃
3. The coil can be replaced without oil
4. Either single or multiple connections is accepted
5. The flow control valve can be operated manually when there is a power failure or other faults

Technical Parameters of Directional Control Valve WE6-61B
Max pressure (PMAX) bar 31.5
Affluent flow (qvmax) l/min 80
Affluent flow (qvmax) l/min 60

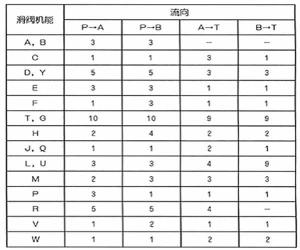

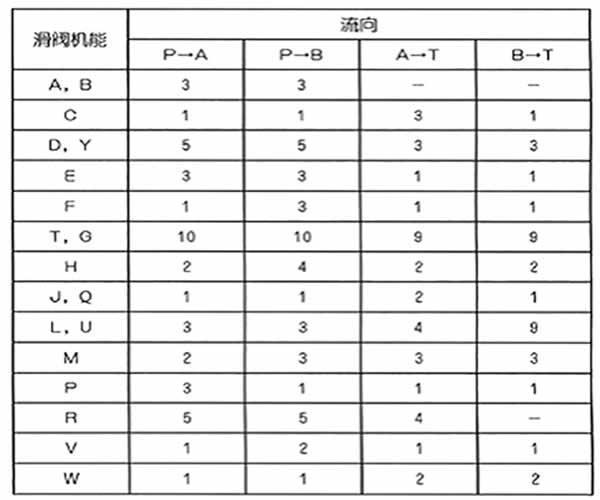

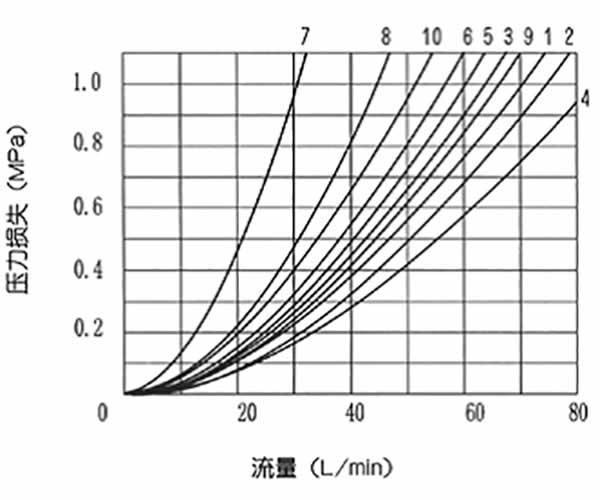

Characteristic Curve (tested at ν=41mm2/s, t=50℃)

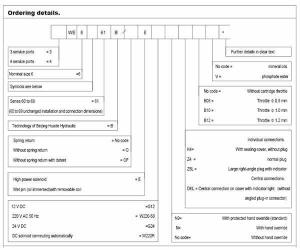

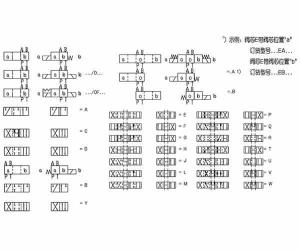

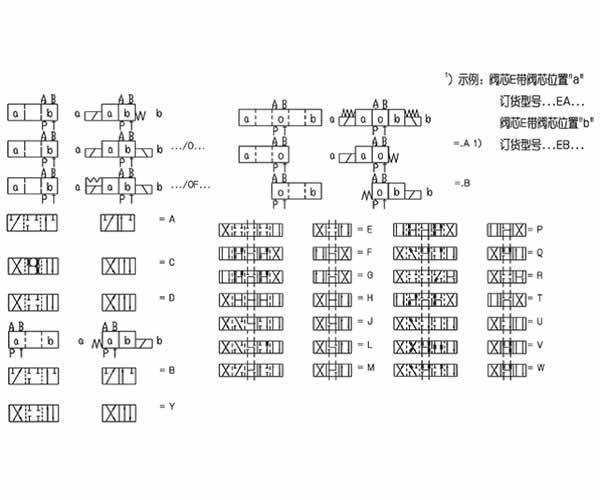

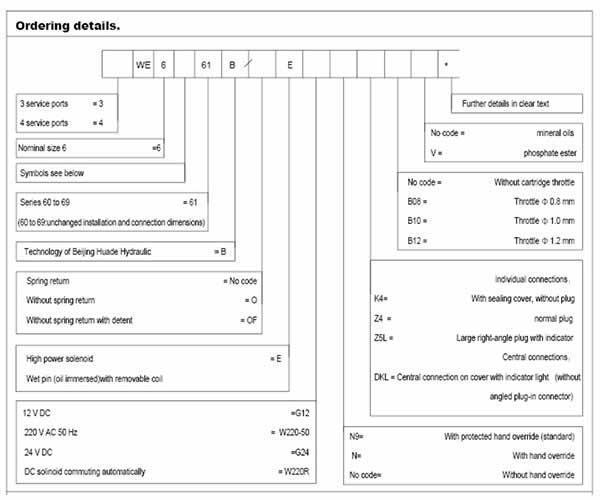

How to Choose the Right Specification
You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.

After Sales Service
1. Our valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
